| Specification | Details |
|---|
| CPU Support | Supports 9th and 8th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors in the LGA1151 package |
| Chipset | Intel® H310 Express Chipset |
| Memory | - 2 x DDR4 DIMM sockets, up to 32 GB
- Dual channel memory architecture
- DDR4 2666/2400/2133 MHz support
- ECC/Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 (ECC in non-ECC mode)
- Supports Extreme Memory Profile (XMP)
* 2666 MHz and XMP require 9th or 8th Gen Intel® Core™ i9/i7/i5 processors |
| Onboard Graphics | Integrated Intel® HD Graphics:
- 1 x D-Sub (max 1920x1200@60Hz)
- 1 x HDMI (max 4096x2160@30Hz)
* HDMI 1.4, HDCP 2.2 supported |
| Expansion Slots | - 1 x PCIe x16 slot (PCIe 3.0)
- 2 x PCIe x1 slots (PCIe 2.0) |
| Storage Interface | - 1 x M.2 (Socket 3, M key, type 2260/2280 SATA & PCIe x2 SSD support)
- 4 x SATA 6Gb/s connectors |

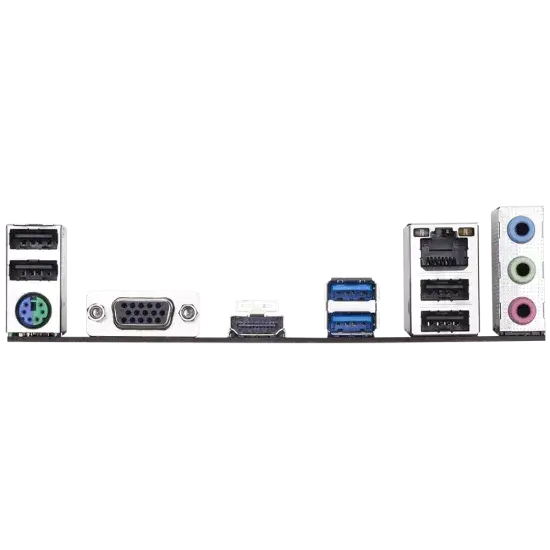

| USB Ports | - 4 x USB 3.1 Gen 1 (2 rear, 2 via header)
- 6 x USB 2.0/1.1 (4 rear, 2 via header) |
| Internal I/O | 1 x 24-pin ATX main power connector |
