| Category | Details |
|---|
| CPU | Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz), 1 MB Cache
* Do not disassemble the onboard SoC and heatsinks to avoid damage. |
| Memory | 2 x DDR3 DIMM sockets, up to 8 GB
Dual channel architecture
Supports DDR3/-L 1333 MHz non-ECC modules
* Windows 32-bit may display less than 4 GB installed memory. |
| Onboard Graphics | D-Sub: Max 2560x1600
HDMI: Max 1920x1080 |
| Audio | Realtek® ALC887 codec, HD Audio
2/4/5.1/7.1-channel support (7.1 requires HD front panel module)
Supports S/PDIF Out |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCI Express x16 slot (runs at x1)
1 x PCI Express x1 slot
1 x PCI slot |
| Storage Interface | 2 x SATA 3Gb/s connectors |
| USB | 1 x USB 3.0/2.0 (rear)
8 x USB 2.0/1.1 ports (4 rear, 4 via headers) |
| Internal I/O Connectors | - 24-pin ATX main power connector
- 4-pin ATX 12V power connector
- 2 x SATA connectors
- CPU fan header, system fan header
- Front panel & audio headers
- S/PDIF Out header
- 2 x USB 2.0 headers
- 2 x serial port headers
- TPM header
- Clear CMOS jumper |

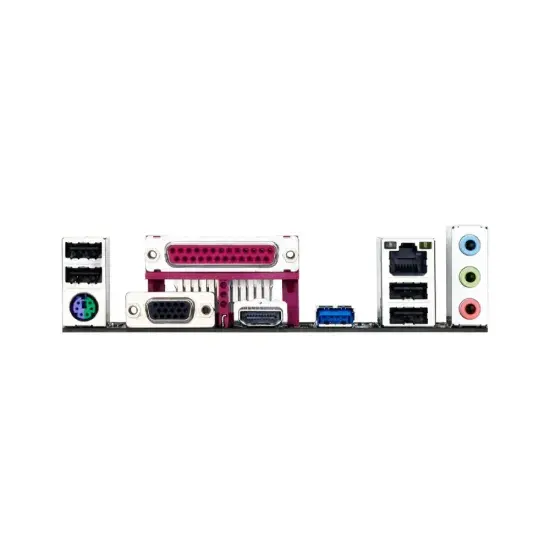

| Back Panel Connectors | - PS/2 keyboard/mouse port
- D-Sub & HDMI ports
- Parallel port
- 1 x USB 3.0/2.0
- 4 x USB 2.0
- RJ-45 LAN port
- 3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | - Voltage, temperature, fan speed detection
- CPU/System fan speed control
* Fan control depends on cooler support |
| BIOS | 64 Mbit AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | - Xpress Install, @BIOS
- APP Center support (*applications vary by model)
- ON/OFF Charge |
| Bundle Software | Norton® Internet Security (OEM), Intel® Smart Connect Technology |
| Operating System | Windows 10 / 8.1 / 8 / 7 |
| Form Factor | Micro ATX, 22.6 cm x 18.0 cm |
