| Component | Description |
|---|
| Chipset | Intel H510 |
| CPU SUPPORT | Socket 1200 for 10th / 11th Gen Intel Core™, Pentium and Celeron processors
* Please refer to www.biostar.com.tw for CPU support list. |
| MEMORY | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list. |
| INTEGRATED VIDEO | Supports DX12
Supports HDCP |
| STORAGE | 4 x SATA III Connector (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD
* When using SATA SSD module on PCIe-M2_1 slot, the SATA_1 connector will be disabled.
* Specifications vary by CPU types |
| LAN | Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | Realtek ALC887
7.1 Channels, High Definition Audio |
| USB | 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers) |
| EXPANSION SLOT | 2 x PCIe 3.0 x1 Slot
1 x PCIe 3.0/4.0 x16 Slot
* The PCIe 4.0 only depends on Rocket Lake CPUs.
* Specifications vary by CPU types |

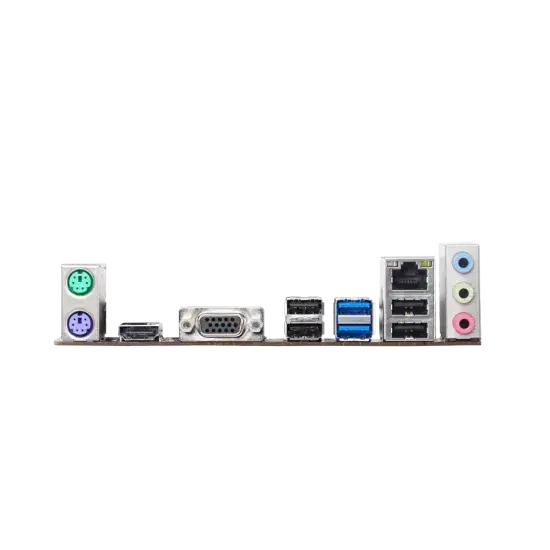

| REAR I/O | - 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x HDMI Port
- 1 x VGA Port
- 2 x USB 3.2 (Gen1) Ports
- 4 x USB 2.0 Ports
- 1 x LAN port
- 3 x Audio Jack
|
| INTERNAL I/O | - 4 x SATA III Connectors (6Gb/s)
- 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
- 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
- 1 x 8-Pin Power Connector
- 1 x 24-Pin Power Connector
- 1 x CPU Fan Connector
- 1 x System Fan Connector
- 1 x Front Panel Header
- 1 x Front Audio Header
- 1 x Clear CMOS Header
- 1 x COM Port Header
|
| H/W MONITORING | CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 18.5cm x 22.6cm (W x L) |
| OS SUPPORT | Supports Windows 10 (64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | - 2 x SATA Cable
- 1 x I/O Shield
- 1 x DVD Driver
- 1 x Quick Guide
|
