| Component | Description |
|---|
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors. L3 cache varies with CPU. |
| Chipset | Intel B760 Express Chipset |
| Memory | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) /6400(O.C.) /6200(O.C.) /6000(O.C.) /5800(O.C.) /5600(O.C.) /5400(O.C.) /5200(O.C.) /4800 /4000 MT/s memory modules.
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory.
Dual channel memory architecture.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode).
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
Support for Extreme Memory Profile (XMP) memory modules. |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz.
Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Expansion Slots | CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (The PCIEX16 slot can only support a graphics card or an NVMe SSD).
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1. |
| Storage Interface | CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU).
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB).
4 x SATA 6Gb/s connectors.
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices. |
| USB | Chipset:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header).
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header).
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers. |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector.
1 x 8-pin ATX 12V power connector.
1 x CPU fan header.
2 x system fan headers.
1 x addressable LED strip header.
1 x RGB LED strip header.
2 x M.2 Socket 3 connectors.
4 x SATA 6Gb/s connectors.
1 x front panel header.
1 x front panel audio header.
1 x S/PDIF Out header.
1 x USB 3.2 Gen 1 header.
3 x USB 2.0/1.1 headers.
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only).
1 x serial port header.
1 x Q-Flash Plus button.
1 x reset jumper.
1 x Clear CMOS jumper. |

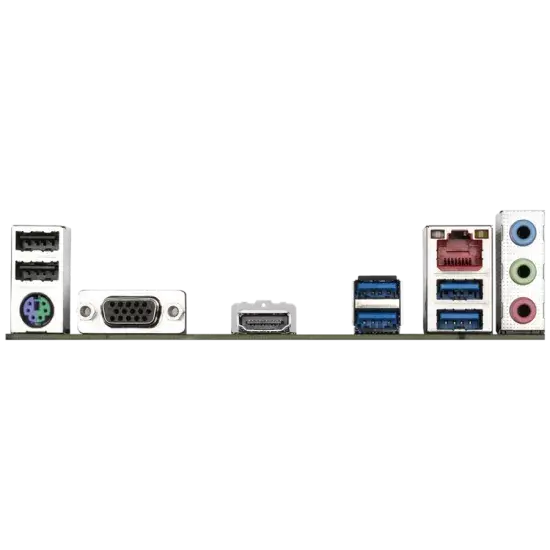

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port.
1 x D-Sub port.
1 x HDMI port.
4 x USB 3.2 Gen 1 ports.
2 x USB 2.0/1.1 ports.
1 x RJ-45 port.
3 x audio jacks. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection.
Temperature detection.
Fan speed detection.
Water cooling flow rate detection.
Fan fail warning.
Fan speed control. |
| BIOS | 1 x 128 Mbit flash.
Use of licensed AMI UEFI BIOS.
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
