| Feature | Description |
|---|
| CPU Support | AMD Socket AM4, Ryzen 5000/4000G/3000 Series |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM, up to 128GB, Dual Channel, XMP Support |
| Graphics | 1 x HDMI 2.1, 1 x DisplayPort 1.4, Max 5120x2880@60Hz, Shared 16GB |
| Audio | Realtek® HD Audio, 2/4/5.1/7.1 Channel |
| LAN | Realtek® GbE LAN (10/100/1000 Mbps) |
| Expansion Slots | 1 x PCIe x16 (Ryzen 5000/3000 = PCIe 4.0), 1 x PCIe x1 |
| Storage | 2 x M.2 (PCIe 4.0/3.0), 4 x SATA 6Gb/s, RAID 0/1/10 |
| USB | 4 x USB 3.2 Gen1 (Rear), 2 x USB 3.2 Gen1 (Header), 6 x USB 2.0 |
| Internal I/O | 24-pin ATX, 8-pin ATX 12V, CPU & System Fan, TPM, Front Audio/USB |

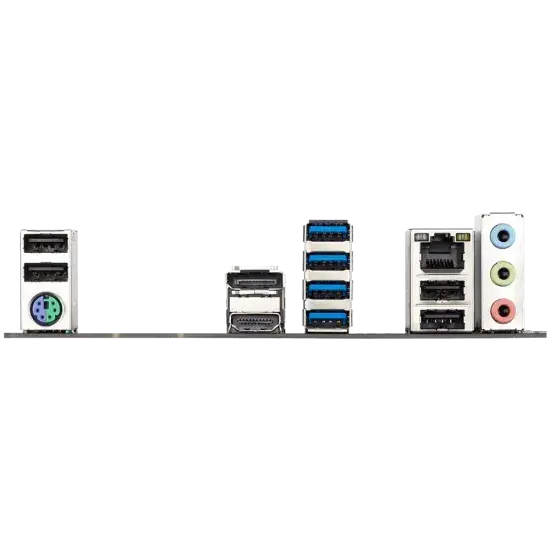

| Back Panel | PS/2, HDMI, DP, 4 x USB 3.2, 4 x USB 2.0, RJ-45, 3 x Audio Jacks |
| BIOS | 128 Mbit Flash, AMI UEFI BIOS, Q-Flash |
| Special Features | APP Center, @BIOS, EasyTune, Smart Backup, System Info Viewer |
| OS Support | Windows 11/10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 24.4cm |
