- Model:Z790 EAGLE AX
- Warranty:3 Years From Gigabyte Service Center
| Feature | Specification |
|---|
| CPU | LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
L3 cache varies with CPU |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 14th & 13th Gen i9/i7: DDR5 up to 7600(O.C.) MT/s
13th Gen i5/i3 & 12th Gen: DDR5 4800/4400 MT/s
4 x DDR5 DIMM sockets (up to 256 GB)
Dual channel, ECC & non-ECC support
XMP support |
| Graphics | Intel® HD Graphics (CPU-dependent)
- 1 x HDMI: 4096x2160@60 Hz (HDMI 2.1)
- 1 x DisplayPort: 4096x2304@60 Hz (DP 1.2) |
| Audio | Realtek® Audio CODEC
HD Audio: 2/4/5.1/7.1-channel
S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN (2.5G/1G/100M) |
| Wi-Fi / Bluetooth | Intel® Wi-Fi 6E AX211 (BT 5.3) or Realtek® RTL8852CE (BT 5.3)
Supports 2.4/5/6 GHz, 11ax 160MHz
(Wi-Fi 6E support) |
| PCIe Slots | CPU: 1 x PCIe 5.0 x16 (PCIEX16)
Chipset: 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1, 2 x PCIe 3.0 x1 |
| Storage | CPU: 1 x M.2 PCIe 4.0 x4/x2 (M2A_CPU)
Chipset: 2 x M.2 (PCIe 4.0 + SATA support)
4 x SATA 6Gb/s
RAID 0/1/5/10 support for NVMe & SATA |
| USB Ports | Back Panel: 1 x USB-C (3.2 Gen 2), 1 x USB-A (3.2 Gen 2), 4 x USB 3.2 Gen 1, 2 x USB 2.0
Internal: 1 x USB-C (3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers |
| Internal Connectors | 1 x 24-pin ATX, 2 x 8-pin 12V
CPU & system fan/pump headers
3 x M.2, 4 x SATA
USB-C, USB 3.2 Gen 1, USB 2.0 headers
RGB/ARGB headers, TPM, Thunderbolt add-in, Q-Flash Plus, Clear CMOS |

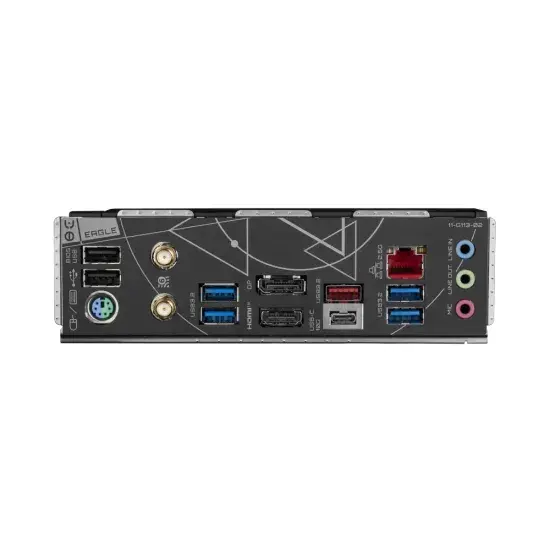

| Back Panel | 1 x PS/2 port
1 x USB-C (3.2 Gen 2), 1 x USB-A (3.2 Gen 2)
4 x USB 3.2 Gen 1, 2 x USB 2.0
1 x HDMI, 1 x DisplayPort
2 x SMA antenna connectors
1 x RJ-45, 3 x audio jacks |
Note: *** Features, Price, Specifications are subject to change without notice
