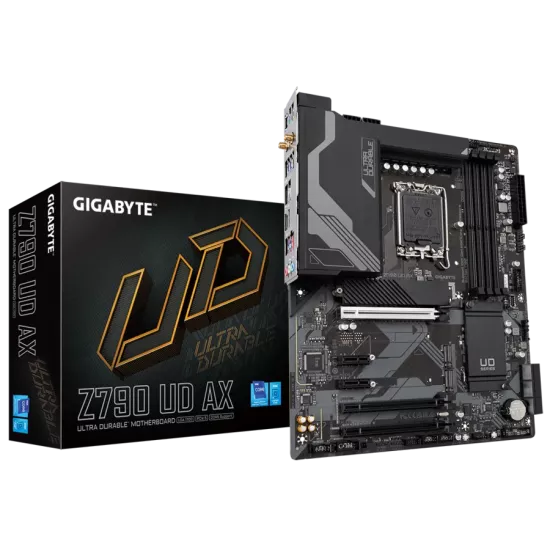

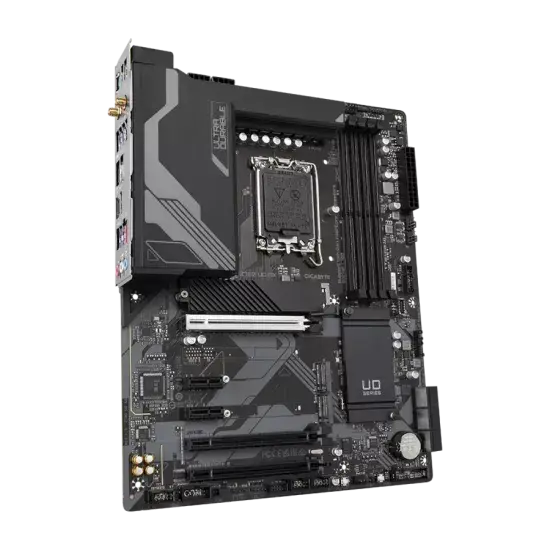

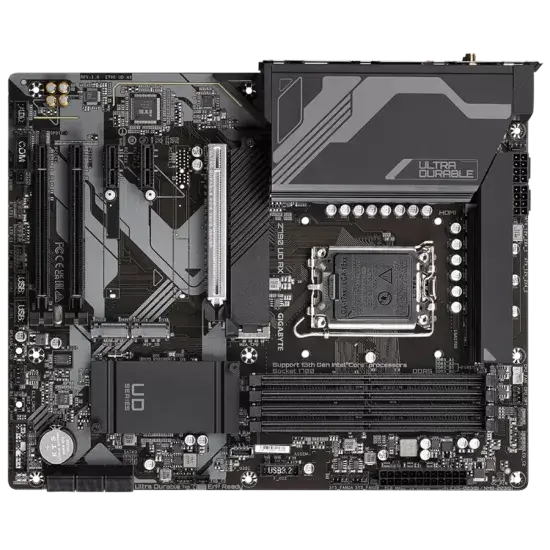

- Model:Z790 UD AX
- Warranty:3 Years From GIGABYTE Service Center
| Feature | Specification |
|---|
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors |
| Chipset | Intel® Z790 Express Chipset |
| Memory | Support for DDR5 7600(O.C.) to 4000 memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB
Dual channel memory architecture
Support for ECC and non-ECC Un-buffered DIMMs
Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support
HDMI port: Max resolution 4096x2160@60 Hz
DisplayPort: Max resolution 4096x2304@60 Hz
Support for HDMI 2.1, HDCP 2.3, and DisplayPort 1.2 |
| Audio | Realtek® Audio CODEC
High Definition Audio, 2/4/5.1/7.1-channel
Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Intel® Wi-Fi 6E AX210/AX211 or Realtek® Wi-Fi 6E RTL8852CE
Bluetooth 5.3
Support for 2.4/5/6 GHz carrier frequency bands |
| Expansion Slots | 1 x PCI Express x16 slot (PCIe 5.0)
1 x PCI Express x16 slot (PCIe 4.0)
1 x PCI Express x16 slot (PCIe 3.0)
2 x PCI Express x1 slots (PCIe 3.0)
Support for AMD CrossFire™ technology |
| Storage Interface | 3 x M.2 connectors (PCIe 4.0)
6 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, RAID 10 support |
| USB | 1 x USB Type-C® (USB 3.2 Gen 2x2)
1 x USB Type-C® (USB 3.2 Gen 1)
1 x USB 3.2 Gen 2 Type-A
6 x USB 3.2 Gen 1
8 x USB 2.0/1.1 |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Multiple fan, LED, USB, and audio headers |
| Back Panel Connectors | 1 x USB Type-C® (USB 3.2 Gen 2x2)
1 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1
4 x USB 2.0/1.1
1 x HDMI 2.0
1 x DisplayPort
1 x RJ-45
3 x audio jacks |
| H/W Monitoring | Voltage, temperature, fan speed, and water cooling flow rate detection
Fan fail warning and speed control |
| BIOS | 256 Mbit flash, AMI UEFI BIOS |
| Unique Features | Support for GIGABYTE Control Center (GCC)
Q-Flash and Q-Flash Plus
Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11/10 64-bit |
| Form Factor | ATX; 30.5cm x 24.4cm |
Note: *** Features, Price, Specifications are subject to change without notice
